Beschreibung

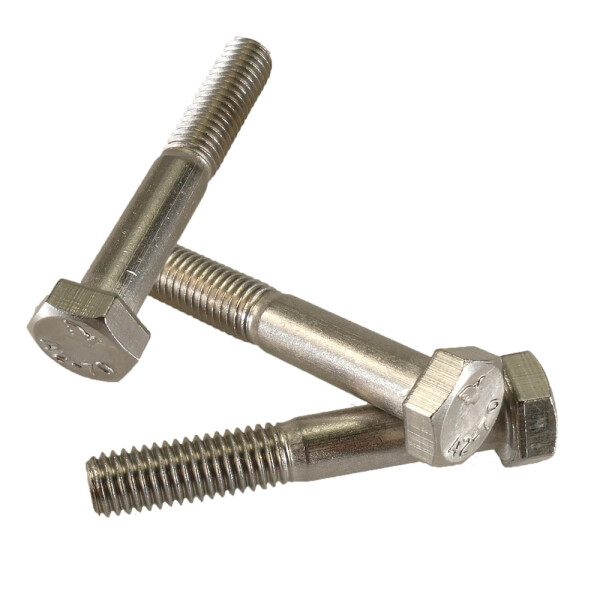

Sechskantschraube M8 x 50mm
Sechskantschraube V2A mit Teilgewinde / Schaft
- Material Edelstahl A2
- DIN 931 (Ähnlich UNI 5737 EN ISO 4014)
| D (mm) | L (mm) | B (mm) | K (mm) | E (mm) | S (mm) | ||
| M8 x 30mm | 8 | 30 | 22 | 5,3 | 14,38 | 13 | |
| M8 x 35mm | 8 | 35 | 22 | 5,3 | 14,38 | 13 | |
| M8 x 40mm | 8 | 40 | 22 | 5,3 | 14,38 | 13 | |
| M8 x 45mm | 8 | 45 | 22 | 5,3 | 14,38 | 13 | |
| M8 x 50mm | 8 | 50 | 22 | 5,3 | 14,38 | 13 | |
| M8 x 55mm | 8 | 55 | 22 | 5,3 | 14,38 | 13 | |
| M8 x 60mm | 8 | 60 | 22 | 5,3 | 14,38 | 13 | |
| M8 x 65mm | 8 | 65 | 22 | 5,3 | 14,38 | 13 | |
| M8 x 70mm | 8 |
