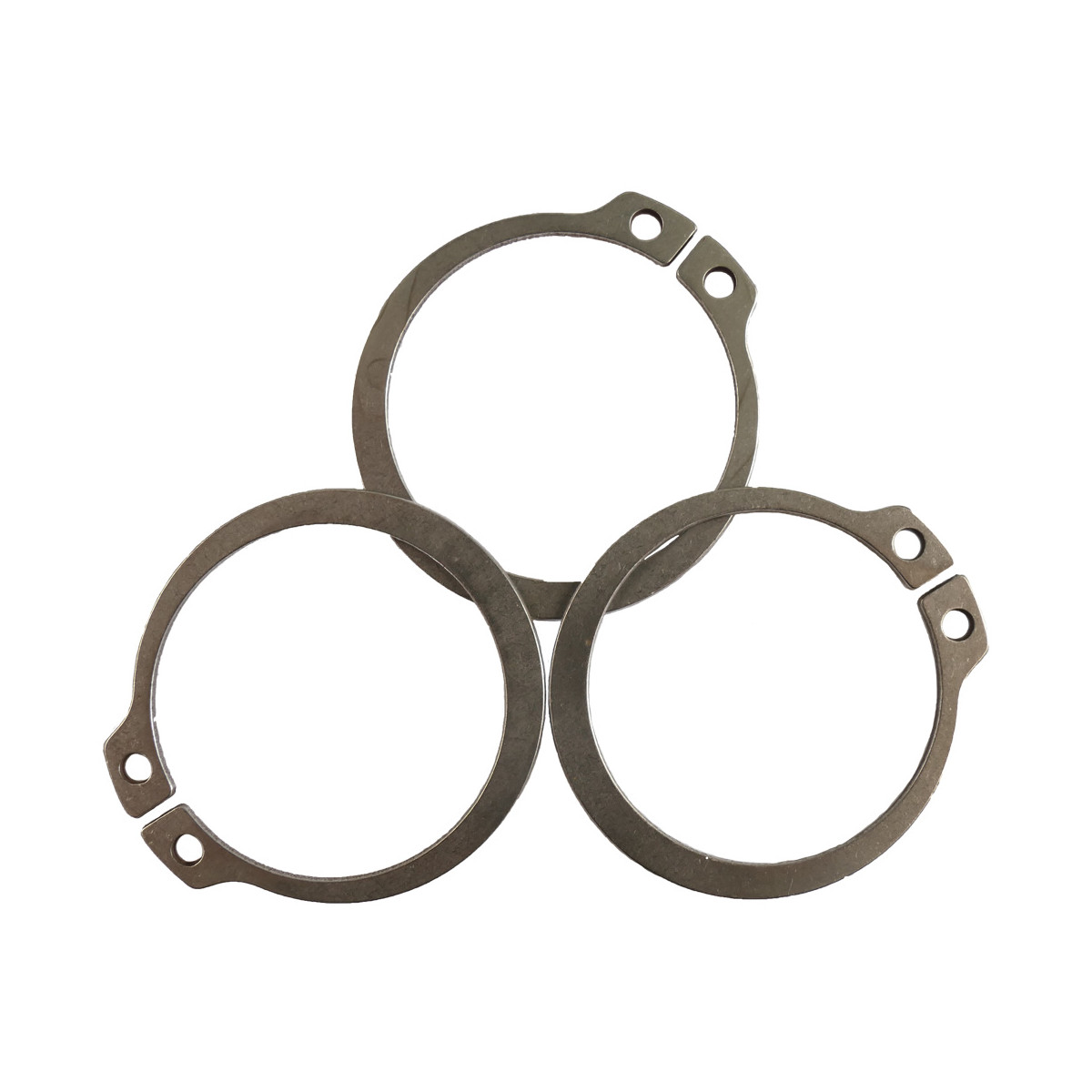

Sicherungsring für Wellen M26
- Material Edelstahl A2
- DIN 471 (Ähnlich UNI 3653-7435)

| |
D (mm) |
L (mm) |
H (mm) |
B (mm) |
| M4 |
3,7 |
1 |
2,2 |
0,9 |
| M5 |
4,7 |
1 |
2,5 |
1,1 |
| M6 |
5,6 |
1,2 |
2,7 |
1,3 |
| M7 |
6,5 |
1,2 |
3,1 |
1,4 |
| M8 |
7,4 |
1,2 |
3,2 |
1,5 |
| M9 |
8,4 |
1,2 |
3,3 |
1,7 |
| M10 |
9,3 |
1,5 |
3,3 |
1,8 |
| M11 |
10,2 |
1,5 |
3,3 |
1,8 |
| M12 |
11 |
1,7 |
3,3 |
1,8 |
| M13 |
11,9 |
1,7 |
3,4 |
2 |
| M14 |
12,9 |
1,7 |
3,5 |
2,1 |
| M15 |
13,8 |
1,7 |
3,6 |
2,2 |
| M16 |
14,7 |
1,7 |
3,7 |
2,2 |
| M17 |
15,7 |
1,7 |
3,8 |
2,3 |
| M18 |
16,5 |
2 |
3,9 |
2,4 |
| M19 |
17,5 |
2 |
3,9 |
2,5 |
| M20 |
18,5 |
2 |
4 |
2,6 |
| M22 |
20,5 |
2 |
4,2 |
2,8 |
| M23 |
21,4 |
2 |
4,3 |
2,9 |
| M24 |
22,2 |
2 |
4,4 |
3 |
| M25 |
23,2 |
2 |
4,4 |
3 |
| M26 |
24,2 |
2 |
4,5 |
3,1 |
| M27 |
25,1 |
2 |
4,6 |
3,1 |
| M28 |
25,9 |
2 |
4,7 |
3,2 |
| M29 |
26,9 |
2 |
4,8 |
3,4 |
| M30 |
27,9 |
2 |
5 |
3,5 |
| M32 |
29,6 |
2,5 |
5,2 |
3,6 |
| M34 |
31,5 |
2,5 |
5,4 |
3,8 |
| M35 |
32,2 |
2,5 |
5,6 |
3,9 |
| M36 |
33,2 |
2,5 |
5,6 |
4 |
| M38 |
35,2 |
2,5 |
5,8 |
4,2 |
| M39 |
36 |
2,5 |
5,9 |
4,3 |
| M40 |
36,5 |
2,5 |
6 |
4,4 |
| M42 |
38,5 |
2,5 |
6,5 |
4,5 |
| M45 |
41,5 |
2,5 |
6,7 |
4,7 |
| M48 |
44,5 |
2,5 |
6,9 |
5 |
| M50 |
45,8 |
2,5 |
6,9 |
5,1 |
Angaben zur Produktsicherheit
Herstellerinformationen:
Inoxmare S.r.l.
Via Pomposa 51/I
47924 Rimini RN
Italien
info@inoxmare.it
www.inoxmare.it
verantwortliche Person:
Inoxmare S.r.l.
Via Pomposa 51/I
47924 Rimini RN
Italien
info@inoxmare.it
https://www.inoxmare.it
| Produkteigenschaft |
Wert |
| Inhalt: |
1,00 Stück
|
